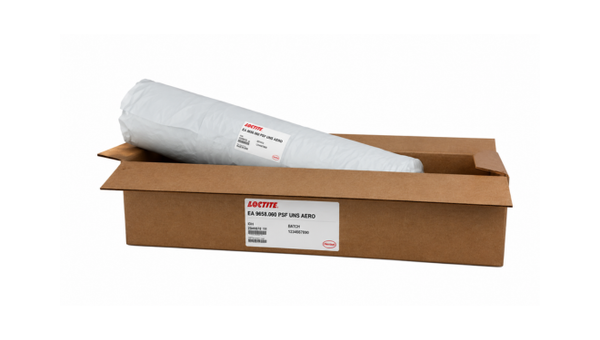

LOCTITE EA 9658.060UNS

Main features

Unsupported 0.060 lb/sf Film
177 deg C Cure Capability
Extended 15-Day Assembly Window

Product Description

LOCTITE EA 9658.060 PSF UNS AERO is the 0.060 lb/sf unsupported configuration of the high-temperature EA 9658 epoxy film adhesive for nacelle metal, composite and honeycomb bonding. The UNS construction contains no fabric carrier and cures for 1 hour at 177 deg C under maintained pressure. Open assembly time is at least 15 days at 25 deg C or 10 days at 32 deg C, while refrigerated storage at -18 deg C or below provides a 9-month warranty life. Applications include high-temperature aerospace structures requiring the specified unsupported film configuration.

Key features

Unsupported film construction: The 0.060 lb/sf UNS configuration contains no fabric carrier.
High-temperature cure: The film cures for 1 hour at 177 deg C under maintained pressure.
Extended assembly window: Open assembly time is at least 15 days at 25 deg C or 10 days at 32 deg C.

Applications

Applications include nacelle metal, composite and honeycomb bonding where the 0.060 lb/sf unsupported construction is specified.

TDS, SDS & Technical Documents

Product_information_sheet-nacelle-film-adhesives-loctite-ea9658

English (Technical documents)

Technical Specifications

Other Properties

Storage Temperature

≤ -18 °C °C

General Properties

Density

0.72 kg/m3

Additional Information

Technical properties

As-supplied properties

Configuration-specific and common family handling values.

Property	Value	Unit	Method / condition
Configuration	EA 9658 .060 PSF UNS		Specific product variant
Construction	Unsupported adhesive		No fabric carrier
Standard package	36 in x 150 ft		450 sf roll
Open assembly time	At least 15	days	At 25 deg C
Open assembly time	At least 10	days	At 32 deg C
Storage temperature	-18 or below	deg C	Sealed container
Warranty life	9	months	At -18 deg C or below, from shipment
Cure schedule	1 hour at 177 deg C		Heat-up rate 2.2 to 4 deg C/minute
