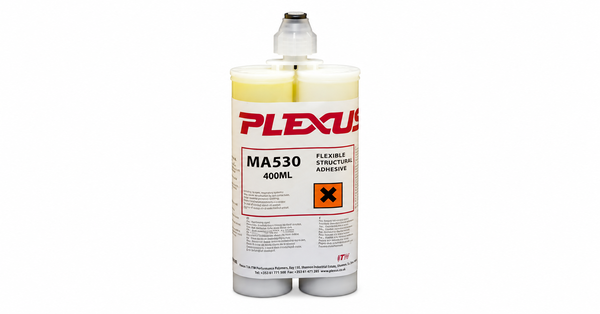

PLEXUS MA530
Harmonization Code : 3904.61.00.00 | Polytetrafluoroethylene plates / sheets / film / tape / strip, self-adhesive, in rolls
Main features
- 30-40 Minute Working Time
- Up to 18 mm Gap Tolerance
- 90-160% Typical Elongation
Product Description
Plexus MA530 Methacrylate Structural Adhesive is a 1:1, non-sag methacrylate system for structural bonding of large composite, thermoplastic, and metal assemblies. The mixed adhesive forms a gray gel and provides a typical 30-40 minute working time at 23.9 deg C. Its 0.75-18.0 mm gap tolerance supports joints with wider dimensional variation, while the cured material combines 17.2-24.1 MPa tensile strength with 90-160% elongation. MA530 is suited to transportation, marine, and industrial structures that need a moderate open time, substantial gap filling, and a tough cured bondline for large-part assembly.
Key features
- Moderate open time: A typical 30-40 minute working time at 23.9 deg C supports large-part assembly.
- Substantial gap tolerance: The adhesive accommodates typical gaps from 0.75 to 18.0 mm.
- High elongation: The cured material provides typical elongation of 90-160% with 17.2-24.1 MPa tensile strength.
Applications / Suitable for
- Large composite, thermoplastic, and metal structures in transportation, marine, and industrial manufacturing.
Technical Specifications
No specifications available.
Additional Information
As supplied / before processing
Part A, Part B, and mixed-system values are identified by row. Values are typical.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Part A color | White | - | As supplied |
| Part B color | Black or white | - | Activator option |
| Mix ratio by volume | 1:1 | - | Part A to Part B |
| Part A viscosity | 130-180 | x 1,000 cP | As supplied |
| Part B viscosity | 160-215 / 80-140 | x 1,000 cP | Black / white activator |
| Working time | 30-40 | min | Mixed adhesive at 23.9 deg C |
| Shelf life | 6 | months | Continuous storage at 13-25 deg C |
After processing / final state
Values describe the cured material or bonded joint under the stated method and condition.
| Property | Value | Unit | Method / condition |
|---|---|---|---|
| Gap tolerance | 0.75-18.0 | mm | Typical cured-joint range |
| Hardness | 70 | Shore D | Cured material |
| Tensile strength | 17.2-24.1 | MPa | ISO 527 |
| Tensile modulus | 551-827 | MPa | ISO 527 |
| Elongation at break | 90-160 | % | ISO 527 |
| Lap shear on aluminum | 14.4 | MPa | Typical; aluminum with PC120 recommended |
