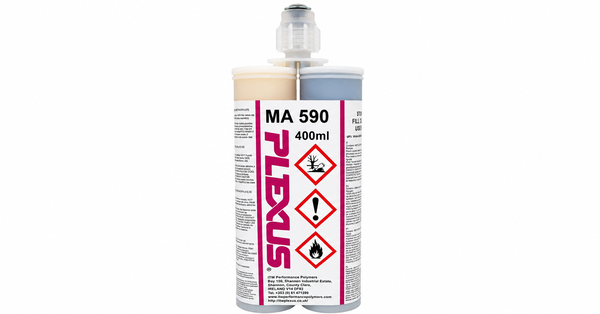

PLEXUS MA590 | Krayden

Main features

90-105 Minute Working Time
Up to 38.1 mm Gap Fill
>130% Typical Elongation

Product Description

Plexus MA590 Methacrylate Structural Adhesive provides an extended-working-time 1:1 methacrylate system for structural bonding of large composite, thermoplastic, and metal assemblies. Its 90-105 minute working time supports prolonged positioning, while the highly thixotropic consistency maintains a gap-filling bead. Typical values include a maximum gap fill of 1.5 in (38.1 mm), tensile strength of 1,880-2,750 psi, and elongation above 130%. This combination is relevant to large structures where parts must be aligned over a longer period while retaining a non-sag adhesive bead and a high-toughness cured joint.

Key features

Long positioning window: A 90-105 minute working time supports extended assembly of large structures.
High-build gap filling: The thixotropic 1:1 system supports a maximum gap fill of 1.5 in (38.1 mm).
Highly extensible bondline: Typical elongation exceeds 130%, with tensile strength of 1,880-2,750 psi.

Applications / Suitable for

Large composite, thermoplastic, and metal assemblies that require a long working window.

Technical Specifications

No specifications available.

Additional Information

Technical properties

As supplied / before processing

Values are typical and are reported at 23 deg C unless otherwise noted.

Property	Value	Unit	Method / condition
Mix ratio	1:1	-	Two-part system
Working time	90-105	min	Typical at 23 deg C
Part A viscosity	140-230	x 1,000 cP	Typical at 23 deg C
Part B viscosity	165-230	x 1,000 cP	Typical at 23 deg C
Maximum gap fill	1.5 (38.1)	in (mm)	Typical joint-design value
